Pipe & Tube
Pipes and tubes are integral components in numerous industries, serving critical roles in transporting fluids, gases, and solids efficiently and reliably. They come in a variety of materials such as steel, copper, plastic, and alloys like titanium and nickel, each chosen for its specific properties such as corrosion resistance, strength, or thermal conductivity. From plumbing and HVAC systems in buildings to large-scale industrial applications such as oil refineries and chemical plants, pipes and tubes play a pivotal role in ensuring the smooth operation of processes and infrastructure. Their diverse applications span from structural support in construction to intricate hydraulic systems in machinery, illustrating their versatility and indispensability across sectors. Precision in manufacturing, adherence to stringent standards, and ongoing innovation in materials and design continue to enhance the performance and longevity of pipes and tubes in meeting the evolving demands of modern engineering and industrial needs.
Pipes Specification
| Pipes Specifications | ASTM A269, ASME SA312, SA358 |
|---|---|
| Dimensional specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Seamless Pipe Size | 6 mm OD - 24" NB |
| Welded Pipe Size | 1 / 2" NB - 24" NB |
| EFW Pipe Size | 6" NB - 48" NB |
| Pipe Manufacturing Techniques | Seamless / ERW / CDW / 100% X Ray Welded |
| Pipe Schedule | SCH 5, SCH10, SCH 20, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XS, SCH XXS |
| Wall Thickness | 0.5mm - 3.40mm |
| Pipes End Types | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Marking | Specification Grade Nominal Pipe Sizes Pipe Schedule or Wall Thickness Manufacturing Method (Seamless / Welded) Heat Number Manufacturer’s Name or Custom Logo - on request Marked Pipe Sample: ANSI B36.19 ASTM A 312 SS 12" NB SCH 40S SEAMLESS HEAT NO. XXXX |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing of Pipes | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
|
Stainless Steel
|
202, 304, 304H, 304L, 309, 310S, 316, 316H, 316L, 316Ti, 317L, 321, 347, 400 Series, 904L |
|---|---|
|
Titanum
|
ASTM B338 Grade-1, 2, 3, 5 (6AL-4V), 7, 9, 11, 12, 23 (6AL-4V ELI) |
|
High Nickel Alloys
|
Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy-20 & Cupro Nickel |
|
Duplex
|
ASTM A790 / UNS N31803 & S32205 (2205) |
|
Super Duplex
|
ASTM A790 / UNS S32750 (2507) & S32760. |

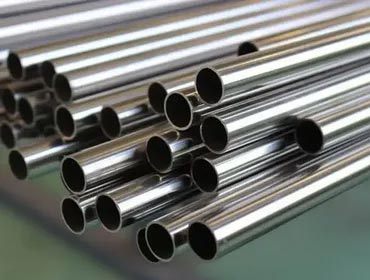

Austenitic Seamless pipes
Austenitic stainless steels account for more than 70% of stainless steel production, with type 304 being the most common grade of stainless steel used. The basic composition of austenitic steels is 18% chromium and 8% nickel. However, type 316 contains 16% to 18% chromium and 11% to 14% nickel which make it exceptional for applications in corrosive environments. The nickel content is higher in austenitic than ferritic and martensitic stainless steels. The steel is non-magnetic, is hardened significantly by cold-working and is known for its high corrosion resistance, formability, weldability, and other fine mechanical properties. The austenitic grades are found in the 200 series and 300 series, and are widely used for cookware, food and beverage equipment, processing equipment, and also in the automotive industry, chemical processing,, and the pulp and paper industry.
| Grade | Description | Applications |
|---|---|---|
| 304 | General-purpose stainless steel with good corrosion resistance, weldability, and formability. Contains 18% chromium and 8% nickel. | Kitchen equipment, food processing, chemical containers, and architectural applications. |
| 304L | Low carbon version of 304, with improved weldability and resistance to sensitization. Contains the same alloying elements as 304 but with a lower carbon content. | Food and beverage industry, chemical processing, and construction. |
| 310S | Stainless steel with high chromium and nickel content for excellent oxidation resistance at high temperatures | Used in high-temperature applications such as furnace parts, heat exchangers, and chemical processing equipment |
| 316 | Corrosion-resistant stainless steel with higher corrosion resistance due to the addition of molybdenum. Contains 16% chromium, 10% nickel, and 2% molybdenum. | Marine environments, chemical processing, pharmaceuticals, and medical devices. |
| 316L | Low carbon version of 316, offering enhanced corrosion resistance and weldability. Contains 16% chromium, 10% nickel, and 2% molybdenum, with lower carbon content. | Marine applications, chemical processing, and medical devices. |
| 317L | version of 317 stainless steel , offering enhanced resistance to sensitization and improved weldability | Commonly used in chemical processing, pharmaceutical equipment, and marine applications where high resistance to corrosion and good weldability are required |
| 321 | Stainless steel with titanium added for improved high-temperature stability. Contains 17% chromium, 9% nickel, and titanium. | Aerospace, chemical processing, and high-temperature applications. |
| 347 | Stainless steel stabilized with niobium for high-temperature strength and resistance to intergranular corrosion. Contains 18% chromium, 10% nickel, and niobium. | Aircraft exhaust systems, chemical processing, and high-temperature applications. | 904L | High-alloy stainless steel with very low carbon content and high corrosion resistance due to high nickel and molybdenum content. Contains 20% chromium, 25% nickel, and 4.5% molybdenum. | Chemical processing, oil and gas industries, and seawater applications. |
Ferritic Seamless Pipes & Tubes
Classified in the 400 series grade, ferritic stainless steels account for approximately 20% of the stainless steel market. They consist of a lower carbon with varying chromium content between 10.5% and 18% and, like martensitic stainless steel, it contains no nickel. Ferritic steels are magnetic, have good ductility, and formability, and, like austenitic stainless steels, are not heat-treatable. They are highly resistant to stress corrosion cracking, offer very good tensile-property stability and have better thermal fatigue resistance, lower thermal expansion, and higher thermal conductivity than austenitic grades. The most common ferritic grade is type 430, known for its high corrosion resistance to nitric acid, sulfur gases, and many organic and food acids. Other grades are type 405, 409, 434, 436, 442, and 446. In general, ferritic steels are used in elevated-temperature applications such as exhaust systems for vehicles. Other applications for ferritic stainless steel include petrochemical components, automotive trim, heat exchangers, furnaces, appliances, and food equipment to name a few.
| Grade | Description | Applications and Uses |
|---|---|---|
| 409 | Ferritic stainless steel with good oxidation resistance. | Automotive exhaust systems, heat exchangers, catalytic converters. |
| 409L | Low carbon version of 409 with improved corrosion resistance. | Automotive exhaust systems, industrial equipment, heat exchangers. |
| 410 | Martensitic stainless steel with high strength and moderate corrosion resistance. | Cutlery, kitchen utensils, pump shafts, valve components. |
| 410S | Low carbon version of 410 to avoid sensitization. | Exhaust systems, furnace parts, industrial equipment. |
| 420 | Martensitic stainless steel with high carbon content for hardness. | Surgical instruments, knives, precision tools. |
| 420F | Free-machining version of 420 for improved machinability. | Automotive components, aerospace parts, medical instruments. |
| 430 | Ferritic stainless steel with good corrosion resistance. | Kitchen appliances, automotive trim, household products. |
| 430F | Free-machining version of 430 for better machinability. | Automotive parts, kitchen utensils, decorative trim. |
| 431 | Martensitic stainless steel with high strength and improved corrosion resistance. | Marine applications, shafts, fasteners. |
| 434 | Ferritic stainless steel with better oxidation and corrosion resistance than 430. | Automotive exhaust systems, appliance components, industrial equipment. |
| 436 | Ferritic stainless steel with good oxidation and corrosion resistance. | Automotive trim, kitchenware, industrial applications. |
| 444 | Ferritic stainless steel with superior corrosion resistance. | Chemical processing, wastewater treatment, marine environments. |
| 446 | High chromium ferritic stainless steel with excellent oxidation resistance. | High-temperature applications like furnace parts, kiln linings. |

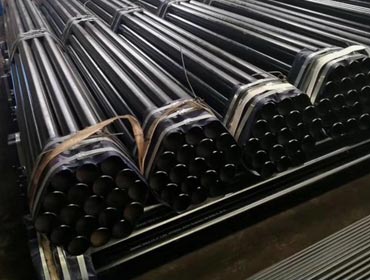

Carbon steel Seamless Pipes & Tubes
Carbon alloy pipes are essential components in industries requiring robust, high-strength materials for conveying fluids and gases under demanding conditions. Composed primarily of carbon and alloying elements like manganese, chromium, and molybdenum, these pipes offer enhanced mechanical properties such as higher tensile strength and improved resistance to corrosion and heat. Available in various grades and specifications (e.g., ASTM A333 for low-temperature service or ASTM A335 for high-temperature applications), carbon alloy pipes are tailored to meet specific operational requirements across sectors like oil and gas, power generation, and automotive. Their versatility extends to seamless and welded options, catering to different installation needs. With rigorous quality control measures and adherence to industry standards, carbon alloy pipes ensure reliability and longevity in critical infrastructure projects worldwide.
| Grade | Description | Applications |
|---|---|---|
| A36 | Low-carbon steel with good weldability, machinability, and impact resistance. | Structural steel for buildings, bridges, and general construction. |
| A516-70 | Carbon steel for pressure vessels with good weldability and moderate strength. | Pressure vessels, boilers, and heat exchangers. |
| A106-B | Carbon steel for high-temperature service with good tensile strength and weldability. | High-temperature piping systems and industrial applications. |
| A333-6 | Low-temperature carbon steel with good impact resistance at low temperatures. | Low-temperature piping for oil and gas industries, and cryogenic applications. |
Duplex & Super Duplex Pipes & tubes
Duplex and Super Duplex pipes and tubes offer superior strength and corrosion resistance, ideal for demanding industrial applications. Composed of austenite and ferrite phases, they provide enhanced durability and weldability compared to traditional stainless steels. Used extensively in offshore oil, gas, and marine environments, these materials meet stringent ASTM standards and undergo rigorous testing for reliability under extreme conditions. Duplex and Super Duplex solutions ensure longevity and cost-efficiency in critical infrastructure projects worldwide.
| Grade | Description | Uses and Applications |
|---|---|---|
| Duplex Stainless Steels | ||
| Duplex 2205 | Austenitic-ferritic stainless steel with high strength and corrosion resistance. | Chemical processing, oil and gas exploration, desalination plants, structural components |
| Super Duplex Stainless Steels | ||
| Super Duplex 2507 | Combines high mechanical strength with superior corrosion resistance. | Subsea equipment, petrochemical plants, heat exchangers, power industry |

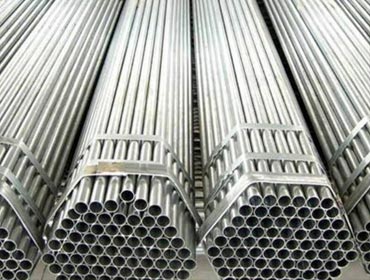

Mild Steel & Gi pipes
MS (Mild Steel) pipes, known for their strength and ductility, are commonly used in construction for structural applications such as columns, beams, and scaffolding. Their versatility extends to water supply systems and industrial settings where they transport fluids like oil, gas, and chemicals. On the other hand, GI (Galvanized Iron) pipes, with their zinc coating, offer enhanced corrosion resistance, making them ideal for plumbing installations, water supply lines, and industrial applications where protection against rust is crucial. Both types of pipes play pivotal roles in infrastructure development, providing reliable solutions across various sectors due to their durability and suitability for different environmental conditions.
| Pipe Type | Grades | Uses and Applications |
|---|---|---|
| MS Pipes | IS 1239, IS 1161, ASTM A53 | - Construction: Columns, beams, scaffolding<br>- Water supply: Distribution pipes<br>- Industrial: Fluid transport (oil, gas, chemicals) |
| GI Pipes | IS 1239 (Part-1), ASTM A53 | - Plumbing: Water supply lines<br>- Construction: Scaffolding, fencing<br>- Industrial: Corrosive environments (due to zinc coating) |
Nickel Alloy Seamless Pipes & Tubes
Nickel alloy pipes are engineered for exceptional performance in environments demanding high corrosion resistance, elevated temperature stability, and robust mechanical properties. Composed primarily of nickel with precise additions of elements like chromium, molybdenum, and cobalt, these alloys exhibit superior resistance to both acidic and alkaline corrosion, making them indispensable in chemical processing, offshore oil and gas exploration, and marine applications. Their ability to withstand high temperatures without compromising strength makes them ideal for use in aerospace components, power generation facilities, and industrial furnaces. Despite their higher cost and challenging fabrication requirements, nickel alloy pipes offer unparalleled reliability and longevity in critical sectors where durability and performance are paramount.
| Grade | Description | Uses and Applications |
|---|---|---|
| Inconel 600 | Nickel-chromium alloy known for its oxidation resistance at high temperatures. | Aerospace, chemical processing, furnace components |
| Inconel 625 | Offers high strength and excellent corrosion resistance, particularly in acidic environments. | Offshore oil and gas, marine environments, aerospace |
| Incoloy 800 | Nickel-iron-chromium alloy with good strength and oxidation resistance at elevated temperatures. | Power generation, heat exchangers, industrial furnaces |
| Incoloy 825 | Nickel-iron-chromium alloy with added molybdenum and copper for excellent resistance to corrosion and oxidation | Suited for harsh environments such as chemical processing, oil and gas industries, and marine applications |
| Hastelloy C276 | Nickel-molybdenum-chromium alloy resistant to corrosive environments including chlorides. | Chemical processing, pollution control, pulp and paper |
| Monel 400 | Nickel-copper alloy known for its resistance to seawater and steam at high temperatures. | Marine engineering, chemical processing, oil refineries |
| 904L | High alloy stainless steel with increased nickel and chromium content for improved resistance to corrosive environments | Typically used in chemical processing, pollution control, and in environments with high concentrations of acids and chlorides |
| Alloy 20 | Nickel-iron-chromium alloy with excellent resistance to sulfuric acid and other corrosives. | Chemical processing, pharmaceuticals, food processing |
Alloy Steel Seamless Pipe
Alloy steel seamless pipes are an essential component in various industrial applications where high strength, durability, and performance are required. They are widely used in the oil and gas, power generation, chemical processing, automotive, and aerospace industries. The seamless manufacturing process ensures that these pipes have consistent quality and performance characteristics, which are critical in demanding environments.
| Grade | Description | Applications and Uses |
|---|---|---|
| A335 P5 | Chromium-Molybdenum Alloy Steel: Designed for high-temperature service with good strength and corrosion resistance. | High-temperature applications in power plants, petrochemical industries, and refineries. |
| A335 P9 | High-Temperature Alloy Steel: Contains Chromium and Molybdenum for improved strength at elevated temperatures. | Power generation plants, chemical and petrochemical processing, and high-temperature environments. |
| A335 P11 | Cr-Mo Alloy Steel: Provides enhanced strength and oxidation resistance for high-temperature applications. | Boilers, superheaters, and heat exchangers in power plants. |
| A335 P22 | Chromium-Molybdenum Alloy Steel: Known for its high strength and excellent corrosion resistance at high temperatures. | Power plants, industrial steam boilers, and petrochemical industries. |
| A335 P91 | Advanced High-Temperature Steel: Contains Chromium, Molybdenum, and Vanadium for exceptional strength and creep resistance. | Ultra-supercritical steam plants, high-pressure environments, and advanced power generation. |
| A182 F5 | Cr-Mo Alloy Steel for High Pressure: Provides good strength and oxidation resistance for high-pressure service. | Valve bodies, flanges, and fittings in high-pressure applications. |
| A182 F9 | High-Temperature Chromium-Molybdenum Steel: Used for high-pressure and high-temperature service. | Power generation, refineries, and chemical processing equipment. |
| A182 F11 | Chromium-Molybdenum Alloy Steel: Suitable for high-temperature applications with moderate corrosion resistance. | High-pressure valves, fittings, and flanges for power and chemical industries. |
| A182 F22 | Cr-Mo Alloy Steel for High Temperature: Known for high strength and resistance to oxidation. | High-temperature service in power plants, oil refineries, and chemical processing. |
| A182 F91 | High-Strength Chromium-Molybdenum Alloy: Offers excellent creep strength and thermal stability for extreme conditions. | High-temperature and high-pressure applications like advanced power generation systems. |
