Hydraulic fittings
Hydraulic fittings connect the hydraulic hose to components like hydraulic cylinders, pipes, tubes, or different types of hydraulic hoses in hydraulic systems. They come in a wide range of types and applications. The different types of hydraulic fittings allow the fluid to flow, change its direction, divert, or mix. These fittings should be capable of creating a tight seal and preventing leakage in the application. These fittings are widely used in hydraulic- powered applications including plumbing, robotics, assembly lines, and heavy equipment.
| MATERIAL | STAINLESS STEEL 316, BRASS, ZINC GALVANIZED |
|---|---|
| TYPES OF THREAD | NPT, UNF, BSPT, METRIC |
| TYPES OF SERIES | S=HIGH PRESSURE (UPTO 800 BAR) L=LIGHT PRESSURE (UPTO 500 BAR) LL=VERY LIGHT PRESSURE (UPTO 100 BAR) |
| CONNECTION TYPE | BITE TYPE & COMPRESSION END |

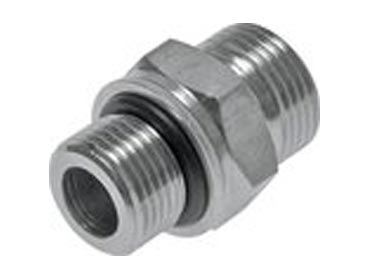

Straight ORFS Fittings
These ORFS, O-Ring Face Seal, fittings are ideal for hydraulic and higher pressure applications. Having a seal on the face of the male threads ensures a tighter leak-free connection to a flat-bottomed female thread. Common accessories are plugs, end-caps, and o-rings. These are in a straight orientation.

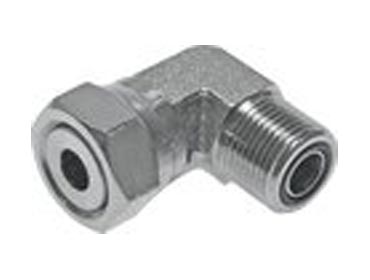

Elbow ORFS Fittings
These ORFS, O-Ring Face Seal, fittings are ideal for hydraulic and higher pressure applications. Having a seal on the face of the male threads ensures a tighter leak-free connection to a flat-bottomed female thread. Common accessories are plugs, end-caps, and o-rings. These are in an elbow orientation, so they are bent at 90 degrees.

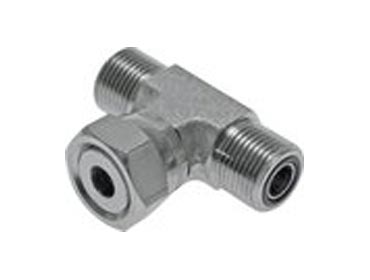

Tee ORFS Fittings
These ORFS, O-Ring Face Seal, fittings are ideal for hydraulic and higher pressure applications. Having a seal on the face of the male threads ensures a tighter leak-free connection to a flat-bottomed female thread. Common accessories are plugs, end-caps, and o-rings. These are in a “T orientation, so they have 3 connection points that can be used for distributing or combining media.
Cross ORFS Fittings
These ORFS, O-Ring Face Seal, fittings are ideal for hydraulic and higher pressure applications. Having a seal on the face of the male threads ensures a tighter leak-free connection to a flat-bottomed female thread. Common accessories are plugs, end-caps, and o-rings. These are in a cross orientation, so they have 4 connection points that can be used for distributing or combining media.

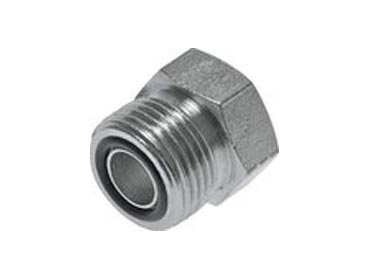

Accessories For ORFS Fittings
These ORFS, O-Ring Face Seal, fitting accessories are ideal for hydraulic and higher pressure applications. Common accessories are plugs, end-caps, and o-rings.

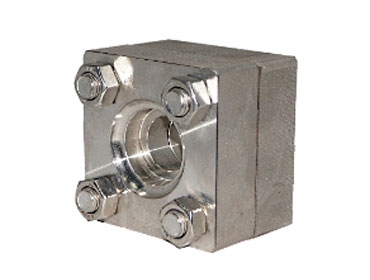

Square Flange
Square flanges are used in hydraulic systems to connect a pipe to component or a pipe to pipe connection. As the name implies, square flanges are squarely shaped. It makes in accordance to different standards based on various countries, square flanges come in different pressure rating in order to fulfill their purpose.

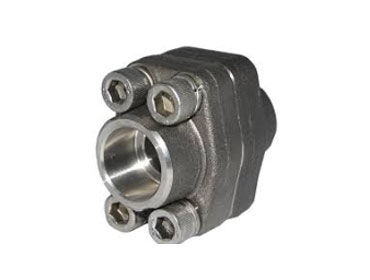

Hydraulic SAE Flange
SAE Flanges are designed to provide an alternative method of connecting a pipe, hose, tube or equipment. The leak free connection is suitable for high pressures, larger sizes and assembly in tight quarters. It has achieved worldwide standard acceptance.
