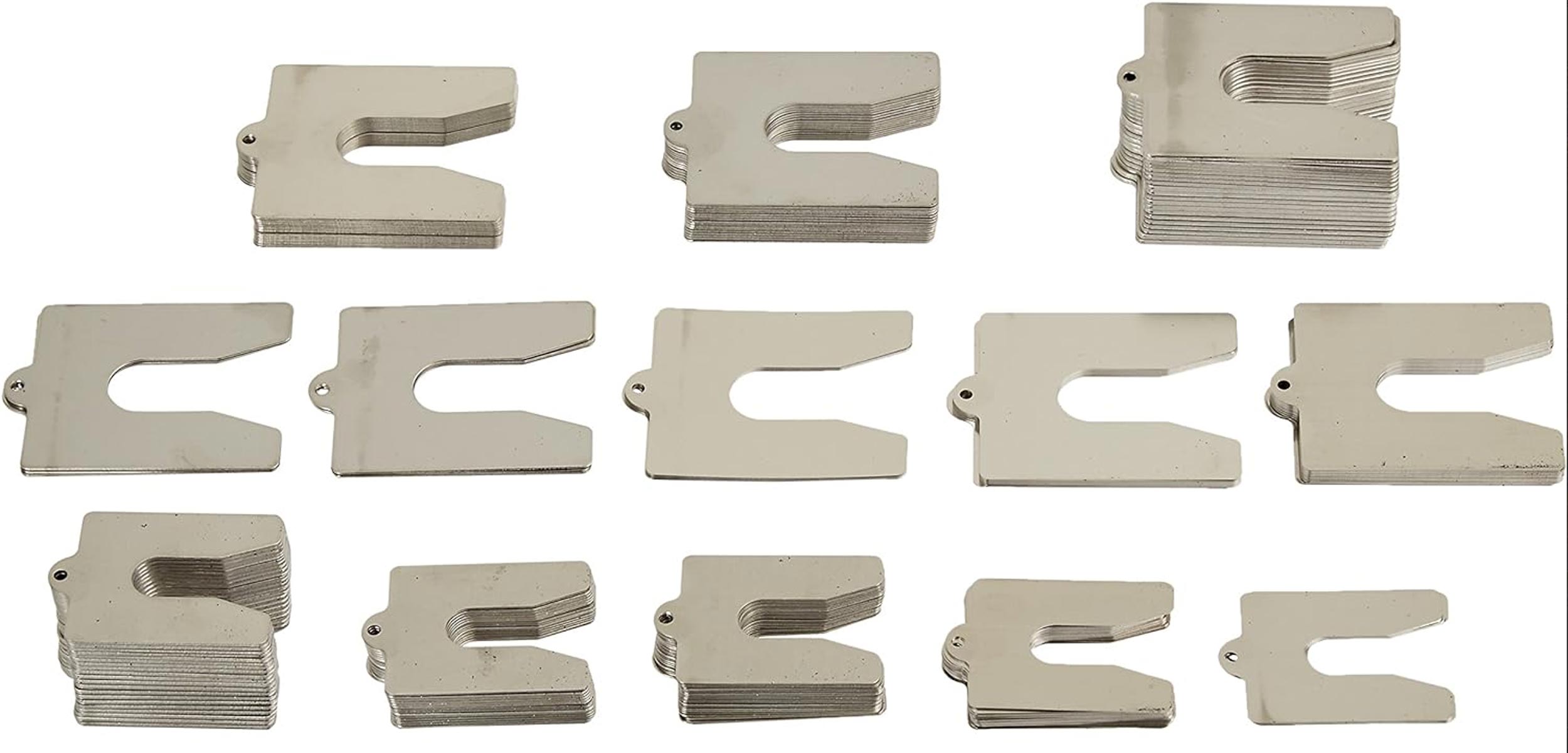

Shims


We introduce ourselves as a specialized manufacturer of Shims. We are able to provide you with the best possible product for your needs. We have an extremely fast turn around time and offer worldwide delivery as well. You can also choose the thickness of your shims, which are pre-cut to the desired size and are available in various thicknesses. Here at Multifit Pipes & Tubes we provide top quality Shims to suit all of your needs. We bring an excellent array of Shims. Shims are manufactured with the help of qualitative material that ensures resistivity towards rust and deformation. We make these shims available in light-weight and are laser marked with size and thickness to enable re-usability and identification.

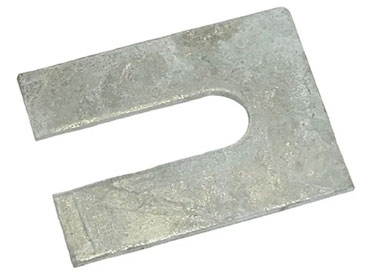

Special Shim


These are regularly square cut shims. Basically, put a shim is either a washer or thin piece of material which is used to make parts fit, to reduce wear, keep the parts aligned properly so that they can function to their best ability. Other advantages of using a Shim include a reduction of assembly time, a lower cost, increased precision, dimensional accuracy, and quick production line repairs and adjustments.

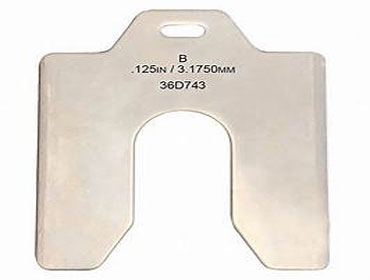

Ready Cut Shims


These are ready cut Shims with a Tab.They are made from Die punch Process and are burr free / Flat. Each shim is individually numbered for Thickness, hence identifying them while doing Alignment is accurate and fast.

Features
  • Manufactured using Die-Punch Process and Laser Cutting.
  • Perfectly Flat, absolutely Burr-free.
  • Each Shim is permanently marked with the respective thickness for quick and identification.
  • Makes alignment an easier task

THICKNESS 0.05, 0.10, 0.20, 0.50, 1.00, 2.00, 3.00, 4.00, 5.00&6.00 MM
SIZE Available in 6 standard sizes and customized shim is also available.
 MATERIAL STAINLESS STEEL, BRASS, COPPER, M.S

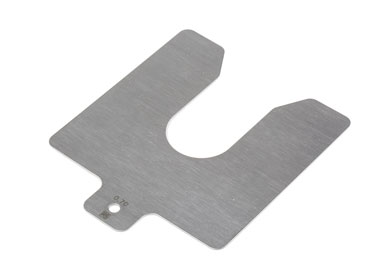

Pre Cut Shims


Having a head or usually known as tab on upper side. Used as Precision alignment for elements that needs to be coupled, also to keep the parts in their correct alignment where rotating shafts and sliding surfaces need to remain parallel, where accumulated tolerances need to be controlled. Taking features of no compress and deformation, Strong and highly corrosion resistant, precut shims sizes conform strictly to all machine frame and horsepower.


Features
  • Manufactured using Die-Punch Process and Laser Cutting.
  • Made Of High-Quality Stainless Steel (Grade 304/316/321), Allowing. Re-use.
  • Perfectly Flat, absolutely Burr-free.
  • Each Shim is permanently marked with the respective thickness for quick and identification.
  • Makes alignment an easier task
  • For accurate vertical machinery alignment
  • SE single slot pre-cut shims are available in five different dimensions and in ten different thicknesses, in pack sizes of 10 pieces.
  • Accurate machine adjustment is an essential element of any alignment process.

THICKNESS 0.02, 0.05, 0.10, 0.20, 0.50, 1.00, 2.00, 3.00, 4.00, 5.00 & 6.00 MM
SIZE Available in 6 standard sizes and customized shim is also available.
 MATERIAL STAINLESS STEEL, BRASS, COPPER, M.S, Aluminium, Plastic
